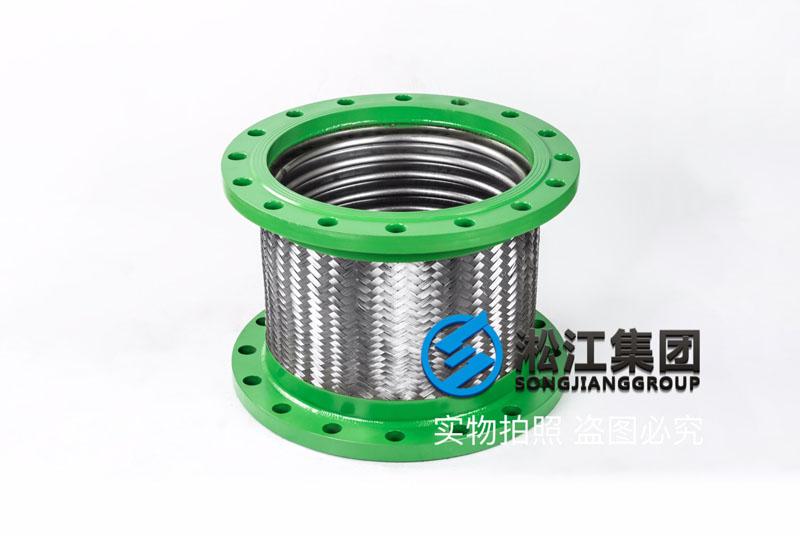

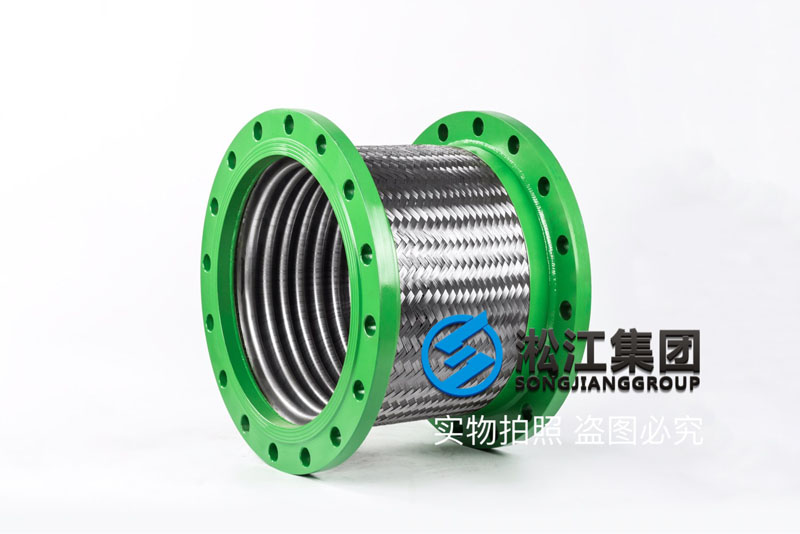

DN400冷水機組金屬軟連接
Metal soft connection of cold water chiller
上海淞江減震器集團有限公司官方網站為您介紹：DN400冷水機組金屬軟連接信息，淞江集團為眾多中央空調冷水機組管道進口和出口處推薦不銹鋼金屬軟連接產品，該產品具有良好的減震和降噪效果，而且具有良好的承壓能力。
Shanghai Songjiang absorber group limited official website for your introduction: metal DN400 chiller soft connection information, Songjiang group for many central air-conditioning pipeline inlet and outlet recommend stainless metal soft connecting products, the product has good shock absorption and noise reduction effect, and has good bearing property.
產品名稱：DN400冷水機組金屬軟連接
型號：JTW
口徑：DN400
法蘭材質：碳鋼鍛打
波紋材質：不銹鋼304
編織網材質：不銹鋼304
產品長度：L=400mm
優點：使用壓力高、壽命長。
缺點：只能減震、不能吸收管道的噪音，使用成本高，那么需要又能減震、又能降噪，成本還低的產品是：限位橡膠接頭。
品牌：淞江集團
產地：上海
生產廠家：上海淞江減震器集團有限公司
Product Name: metal soft connection of DN400 chiller
Model: JTW
Caliber: DN400
Flange material: carbon steel forging
Corrugated material: stainless steel 304
Woven net material: stainless steel 304
Product length: L=400mm
Advantages: high pressure and long life.
Disadvantages: it can only absorb shock, not absorb the noise of pipeline, and has high use cost, so it needs shock absorption and noise reduction. The product with low cost is the limited rubber joint.
Brand: Songjiang group
Origin: Shanghai
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
材料說明：
波紋管體、編織網：為了更持久的使用壽命，全部采用不銹鋼304正材生產，支持各種光譜儀檢測，假一賠十，厚度全部厚于同行業標準。
連接法蘭：法蘭全部采用山西正宗鍛打材質，無論是強度還是密封性都是很好的材質，不要拿市面上的鑄鋼、鋼板鋼法蘭來對比，沒有任何可比性。
焊材：焊材全部采高于母材等級標準，讓焊接點更加牢固。

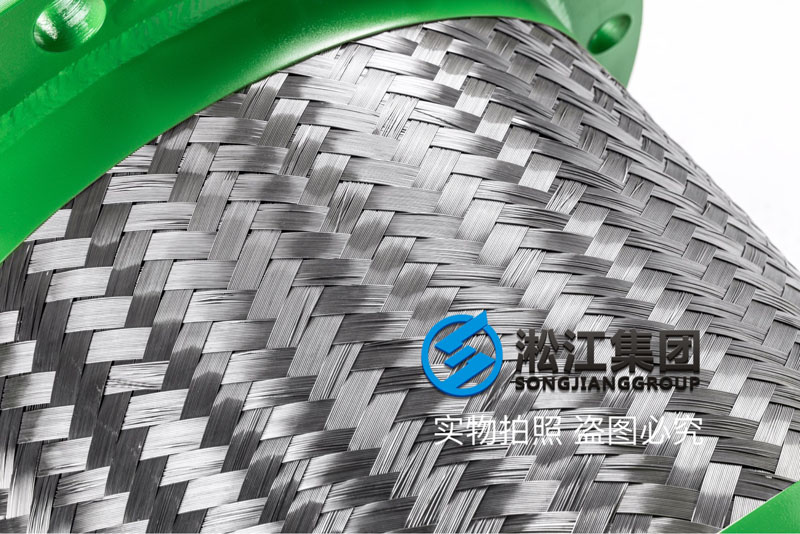

Material description:
Corrugated pipe and braided mesh: in order to prolong the, all stainless steel 304 production is used to support all kinds of spectrometer detection. The fake one is ten, the thickness is all thicker than the same industry standard.
Connecting flange: all flanges are made of orthodox forging material in Shanxi, both strength and sealing are the best materials. Do not compare the cast steel and steel plate flange on the market with no comparability.
Welding consumables: welding materials are higher than the level of the parent material standard, let the welding point more firmly.
冷水機組介紹：
在制冷行業中分為風冷式冷水機組和水冷式冷水機組兩種，根據壓縮機又分為螺桿式冷水機組、渦旋式冷水機組、離心式冷水機組。在溫度控制上分為低溫工業冷水機和常溫冷水機，常溫機組溫度一般控制在0度-35度范圍內。低溫機組溫度控制一般在0度至-100度左右。
冷水機組又稱為：冷凍機、制冷機組、冰水機組、冷卻設備等，因各行各業的使用比較廣泛，所以對冷水機組的要求也不一樣。其工作原理是一個多功能的機器，除去了液體蒸氣通過壓縮或熱吸收式制冷循環。
冷水機組包括四個主要組成部分：壓縮機，蒸發器，冷凝器，膨脹閥，從而實現了機組制冷制熱效果。
